Databases

Creating a Database in Exosphere

Step-by-Step Guide

1. Navigate to Inventory → Databases and click "New Database"

2. Configure Database Settings

   • Database name (required) – Descriptive name
   • Description (optional) – Purpose or data source
   • Database ID (required) – Unique identifier for the database

3. Create Database Schema Add columns by clicking "+ Add Column". For each column, configure:

Schema Field Configuration

Column Label

What: Display name shown in the UI Format: Free text, user-friendly Example: "Custom Value 1", "Device Temperature", "Status Message"

Column ID

What: Technical column name in the database Format: Only a-z, 0-9, -, _ (no spaces!) Example: custom_value1, device_temperature, status_msg

Validation rules:

• No spaces
• No uppercase letters
• No special characters except - and _
• Must be unique

Data Type

Options:

• Text: Strings, varchar
• Number: int, float, decimal
• Boolean: true/false
• Date/Timestamp: Timestamps

Display Format

What: How the value is displayed in the UI Options:

• Original: Raw value from DB
• Formatted: With formatting (e.g. thousand separators for numbers)
• Custom: Available based on data type (e.g. date format)

Number Formatting Options:

• <v>: Format according to Miniserver settings
• <v.0>: Value without decimals
• <v.1>: Value with 1 decimal
• <v.2>: Value with 2 decimals
• <v.3>: Value with 3 decimals

Example: temperature <v.2>°C

Date/Timestamp Formatting Options:

• y: Calendar year
• M: Month
• d: Day of month
• D/DDD: Day of year
• h: Hour [1-12]
• H: Hour [0-23]
• m: Minute
• s: Second

Example: yyyy-MM-dd HH:mm:ss

All options: Unicode Date Field Symbol Table

Aggregation

What: For metrics/reports - how values are aggregated Options:

• None: No aggregation
• Sum: Total sum
• Avg: Average
• Min/Max: Minimum/Maximum
• Count: Count of records

Required

What: Checkbox for mandatory field Checked = Value must always be present

Example Configuration:

Column label:     Device Temperature
Column ID:        device_temperature
Data type:        Number
Display format:   Formatted
Aggregation:      Avg
Required:         ☑

4. Save Database Click "Save" – Database is now accessible to workspace members

Connecting Loxone Config to Exosphere Databases

After creating a database in Exosphere, you need to configure the corresponding database connectors in Loxone Config to send data from your Miniserver to Exosphere.

Prerequisites

• Exosphere Connection Active – Ensure your Miniserver is connected to Exosphere via Network Periphery → Exosphere
• Database Created in Exosphere – Create the database in Exosphere first and export its schema
• Schema Exported – Export the database schema (.json) from Exosphere for import into Loxone Config

Loxone Config Setup

1. Import Database Table

• Open Loxone Config and navigate to your project
• Add a new "Database Table" from the periphery tree
• Import the schema (.json file) exported from Exosphere
• Verify that Database ID and Column IDs match exactly with Exosphere

2. Choose the Right Connector

Loxone provides two database connector types:

3. Configure Session Database Connector

For events with start and end times:

• Drag "Session Database Connector" from the building blocks onto your programming canvas
• Connect SStart input to the signal that starts the session (e.g., wallbox starts charging)
• Connect SEnd input to the signal that ends the session (e.g., wallbox stops charging)
• (Optional) Use CI1–CI16 custom inputs for additional data (e.g., energy consumed, user ID)
• Connect the API Connector output of the Session Database Connector to the API Connector input of your Database Table

Example Use Case: Wallbox Charging Sessions

• SStart: Wallbox charging state = ON
• SEnd: Wallbox charging state = OFF
• CI1: Energy consumed (kWh)
• CI2: Charging power (kW)
• CI3: User RFID tag

4. Configure Event Database Connector

For single events at a specific time:

• Drag "Event Database Connector" from the building blocks onto your programming canvas
• Connect ETr input to the event trigger (e.g., door sensor triggered, button pressed)
• (Optional) Use CI1–CI16 custom inputs for event-specific data (e.g., temperature, status code)
• Connect the API Connector output of the Event Database Connector to the API Connector input of your Database Table

Example Use Case: Door Access Log

• ETr: Front door opened (pulse on door contact)
• CI1: Door name/location
• CI2: User who opened (from access control)
• CI3: Current temperature outside

5. Save and Upload Configuration

After configuring the connectors:

1. Save your Loxone Config project
2. Upload the configuration to your Miniserver
3. Verify in Exosphere that data starts appearing in the database

Database Features

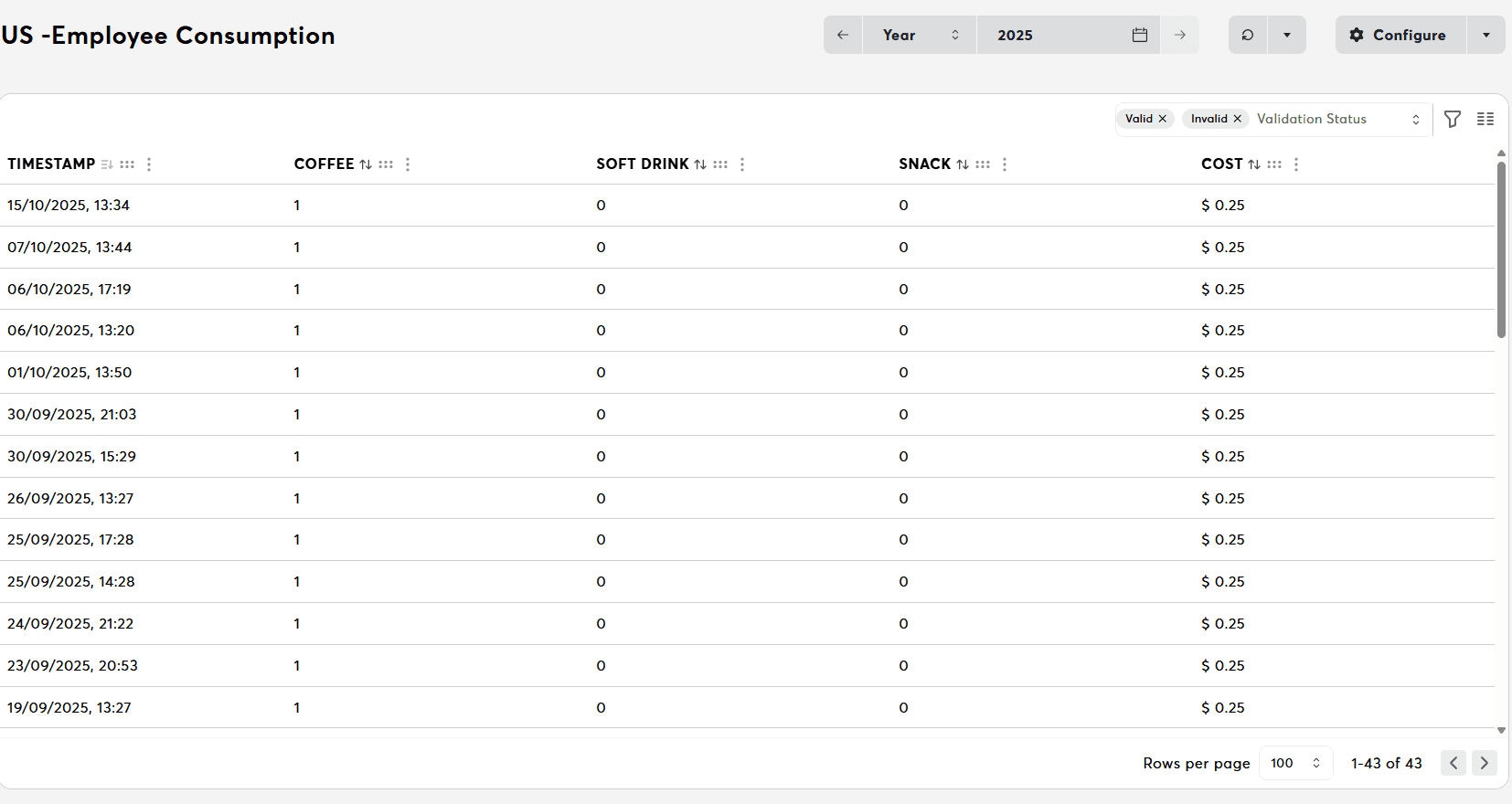

Database Detail View

When you open a database, Exosphere shows a full data table with:

• Time range controls
• Validation status filtering
• Configurable columns
• Sorting and pagination
• Database export

Available actions include Edit, Rename, Delete, and Export. See Export Database Data for the export workflow.

Database Edit View

Open a database and click Edit to manage:

• Field schema (add, remove, reorder, change field types)
• Database settings
• Sharing options (Enterprise)

Use Save to apply changes or Cancel to discard unsaved edits.

Filtering

Apply powerful filters to narrow data:

Sorting

Sort database by any column:

• Single-column – Click column header

Permissions

• View access: All workspace roles can open database data.
• Create/Edit/Delete: Owner, Administrator, and Editor roles.
• Permissions are evaluated per structure element.

Troubleshooting

For common database issues, see the Troubleshooting Guide.
